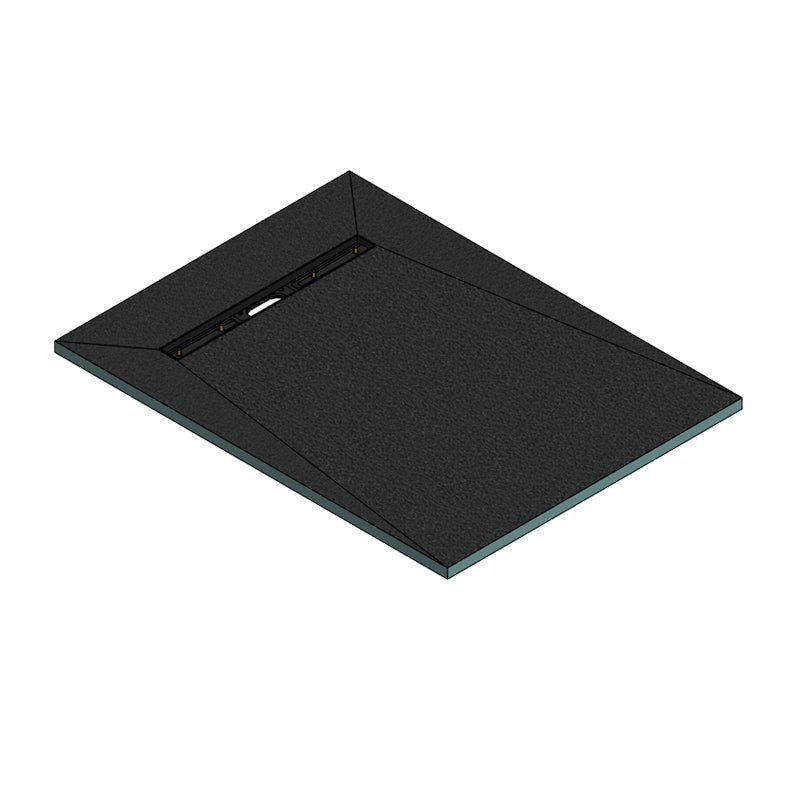

A Hydraset Rectangular Tray with 600mm End Drain 1600 x 900mm offers streamlined functionality with its low-profile 30 mm height, delivering level access that blends seamlessly with tiled flooring. This tray is designed for wetroom installations, eliminating raised thresholds while maintaining optimal drainage through its engineered 600 mm linear end waste system. Suitable for both timber and screeded floor types, it ensures versatility and ease of integration into a range of bathroom structures. The tray’s substantial dimensions—1600 mm by 900 mm—provide generous standing space without compromising on sleek modern aesthetics. Manufactured from a reinforced composite of high-density foam and durable plastic, it offers both strength and insulation. To complete installation, a separate 600 mm cover or tileable finish is required. The tray cannot be trimmed, so precise size selection is essential.

Product Features

• Low-profile rectangular wetroom tray designed for level access
• 600 mm linear end drain for streamlined, effective water drainage
• 30 mm height, creating a flush, tileable floor surface without steps
• Gentle slope directing water toward the waste, preventing pooling
• Kit includes stainless steel drain cover plate and finishing trim
• Designed for both timber and screeded subfloors
• Supplied with full installation and drainage kit
• High-capacity drain trap capable of handling up to 42 litres per minute
• Option to customise drain cover finishes (e.g. stainless steel, tileable, or in coloured trims)
• Floor overboarding with 10 mm board recommended for optimal installation

Product Specifications

• Shape: Rectangular

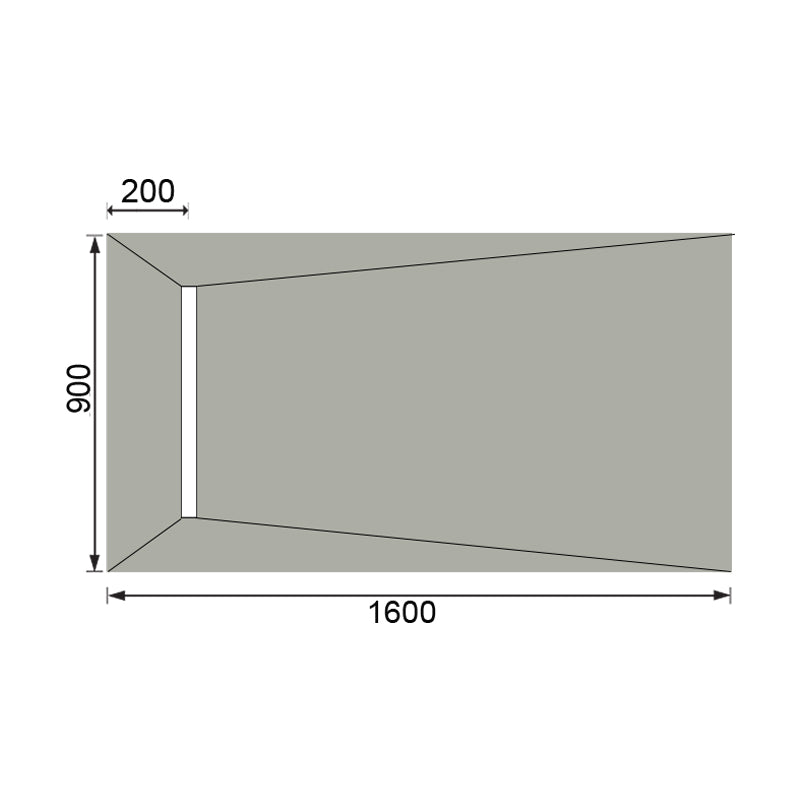

• Dimensions: 1600 mm (length) × 900 mm (width) × 30 mm (height)
• Drain type: Linear 600 mm end drain (offset position at end of tray)
• Material: Lightweight structural former (foam based), finished for tile adhesion
• Weight: Approximately 12 kg
• Suitable for: Level access installation over tile floors, timber and screeded subfloors
• Flow rate: High-capacity drain trap up to 42 litres per minute
• Floor compatibility: Requires floor overboarding with 10 mm board
• Warranty: 2 years manufacturer warranty (extendable under registration options)
• Includes: Tray, linear waste trap, cover plate & trim, and installation kit which contains wood floor primer, Pro-Seal premix, waterproof tape, internal corners, tile guide, paintbrush, notched trowel, and fixing components
