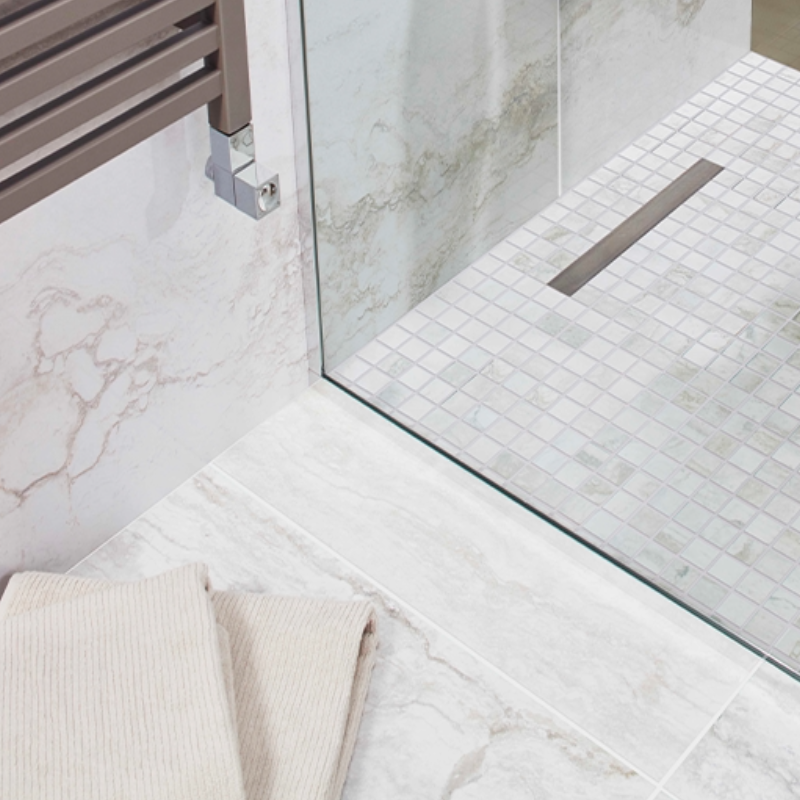

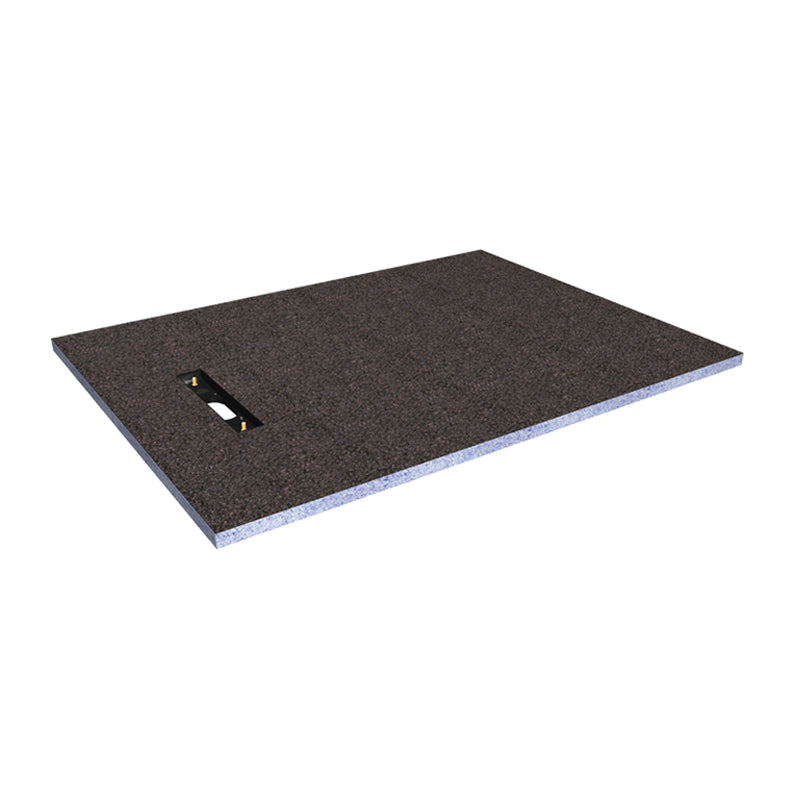

The Hydraset Rectangular Tray with 300 mm End Drain (1600 × 900 mm) provides a low-profile, level-access shower base ideal for modern wetrooms. With a slim 30 mm height, it installs flush with the surrounding floor, creating a seamless and accessible transition. The rectangular shape with an end-positioned linear drain ensures efficient water flow while maximising usable shower space.

Constructed from durable, rigid materials suitable for both timber joist and screeded subfloors, this tray supports typical wetroom finishes and tiles 9–10 mm thick. The pre-formed slope toward the end drain simplifies installation, reducing complex cutting or adjustments. Lightweight yet structurally strong, it maintains integrity under regular use while supporting tiled surfaces.

Supplied with a complete installation and drainage kit, the tray facilitates efficient waterproofing and waste connection. Designed for modern, accessible bathrooms, it supports barrier-free entry and a clean, minimalist aesthetic. Backed by a 15-year warranty, the Hydraset 1600 × 900 mm Rectangular Tray with 300 mm End Drain is a durable and practical investment for long-term bathroom performance.

Product Features

• Rectangular wetroom tray with a 300 mm linear end drain for efficient water clearance
• Ultra-low profile height of 30 mm suited for level access and barrier-free shower installations
• Tray surface is waterproof coated and ready for tiling, delivering a seamless finish with various tile types
• Designed for installation into timber or screeded floors, fitting between floor joists to create a flat wetroom floor
• Low-maintenance and durable waste system with high flow capacity to minimize water pooling risks
• 15-year guarantee for peace of mind and long-term durability

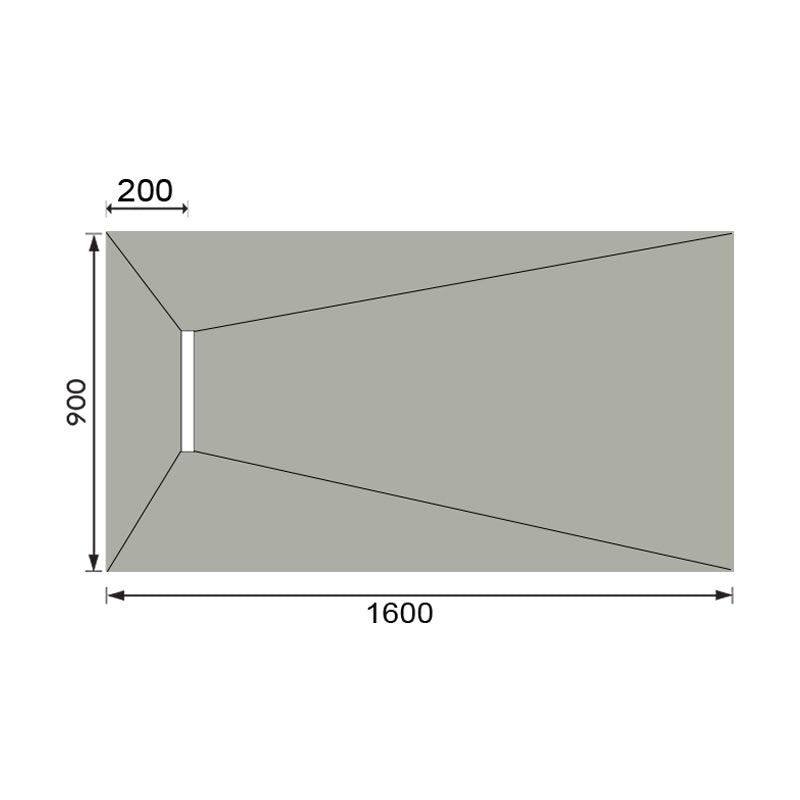

Product Specifications

• Length: 1600 mm
• Width: 900 mm
• Height/Thickness: 30 mm
• Shape: Rectangular
• Drain Type: Linear end drain
• Drain Length: 300 mm
• Material: Cement-coated extruded polystyrene (XPS), or structural foam with a mortar coating
• Surface: Ready for tiling, waterproof coated
• Suitable Flooring: Timber joists or screeded floor installations
• Required Waste: Supplied or factory-sealed linear waste system (check if included)
• Warranty Period: 15 years
