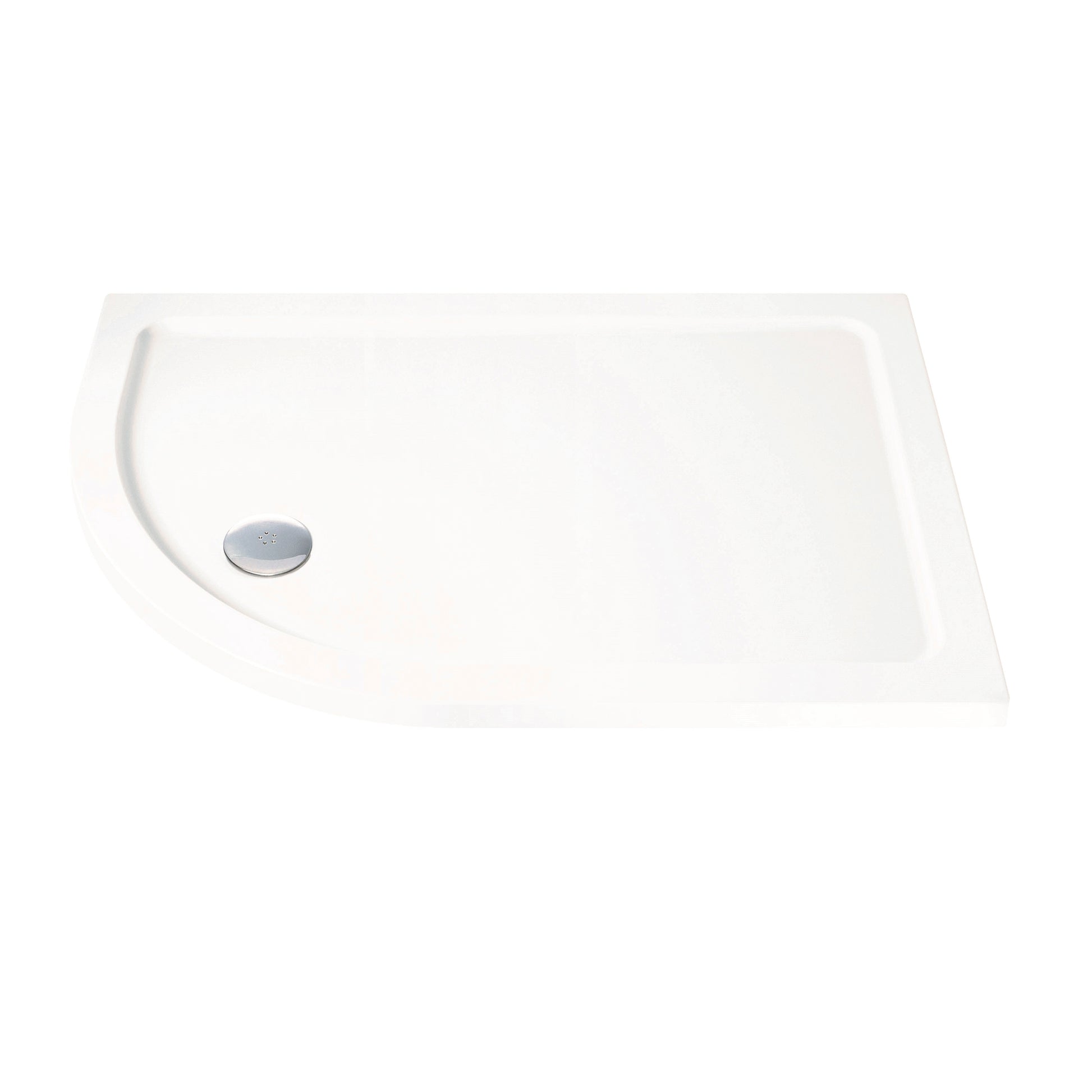

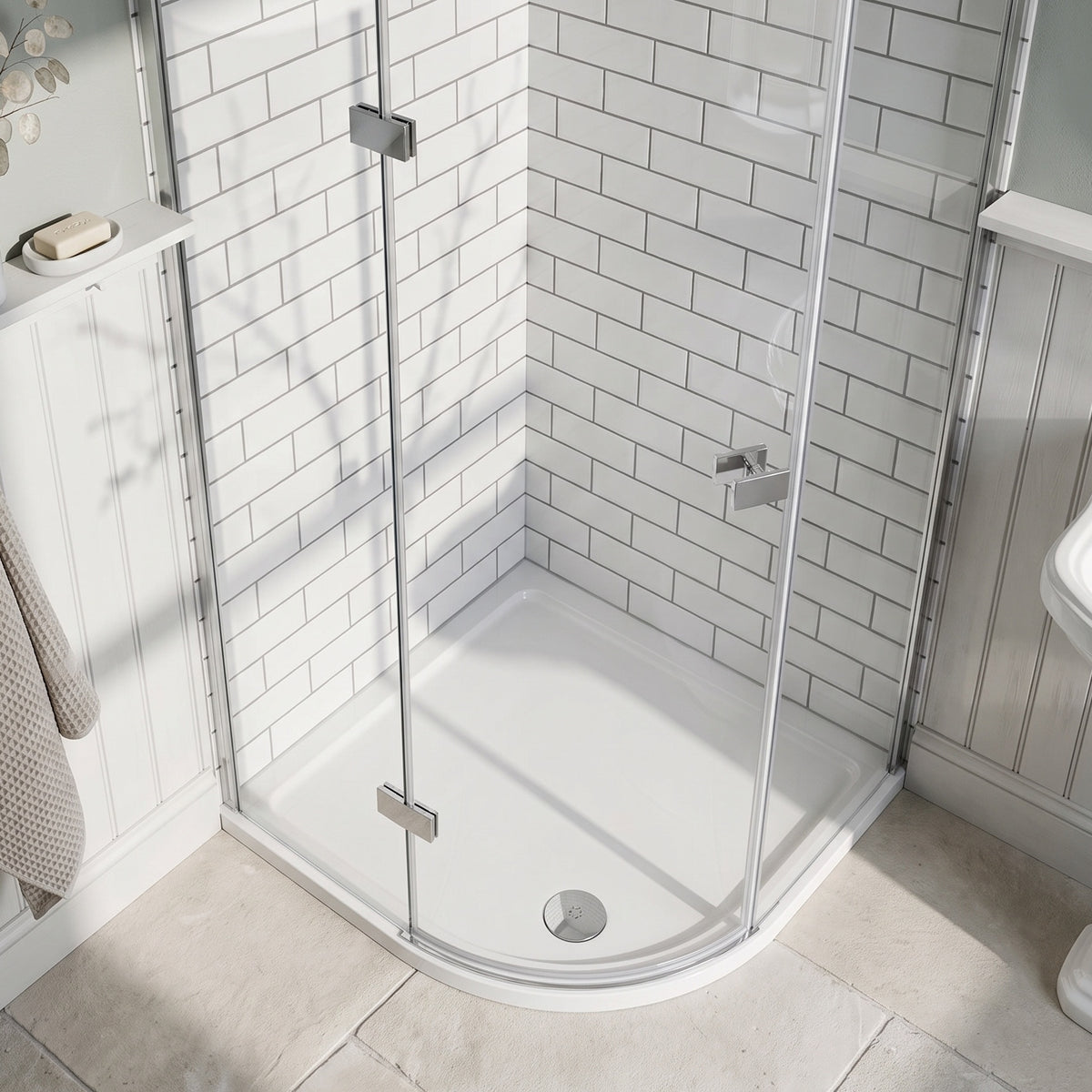

The Fairford 900 x 800mm Offset Quadrant, LH Shower Tray is a modern and practical addition to any bathroom. Manufactured in the UK, its low-profile design provides versatility to complement various enclosures while enhancing both aesthetics and functionality. Made with a durable acrylic cap and stone resin core, this shower tray is 40% lighter than traditional options, simplifying installation.

This environmentally conscious product uses WRAS-approved, phthalate-free materials, and features a gloss white finish that is easy to clean. Designed for a 90mm High Flow Waste system, it efficiently drains water at 32 litres per minute, with the waste positioned centrally for optimal performance.

With up to 10mm of fitting tolerance and compatibility with a riser kit for additional height, the tray meets BS EN 14527:2016 standards and comes with a 25-year warranty. Available in a left-handed orientation, it is a reliable choice for enhancing your shower experience.

• Modern bathroom innovation and elegance
• Premium quality manufactured in the UK
• Sleek, low-profile design
• Versatile for various enclosures
• Lightweight (40% lighter than traditional trays)
• Constructed with acrylic cap and stone resin core
• WRAS-approved, phthalate-free materials
• Easy-to-clean gloss white finish
• Accommodates 90mm High Flow Waste system
• Exceptional water drainage (32 litres per minute)
• Central waste location along the curved edge
• Base offers up to 10mm tolerance for fitting
• Optional riser kit available (elevates by 96mm)
• Tested to BS EN 14527:2016 standards
• 25-year warranty on the tray
• Left-handed orientation
• Quadrant shape

• Guarantee: 25 Year
• Finish: Gloss White
• Colour: White
• Comes with Waste: No
• Construction Material: Acrylic cap with stone resin core
• Dimensions: 900mm x 800mm (shower tray size)
• Additional dimensions:
• Height Profile: 40mm
• Waste Size: 90mm
• Bath Size: 1800 x 800mm
• Other Dimensions:
• Dimension D: 65mm
• Dimension E: 510mm
• Dimension F: 600mm
• Dimension G: 250mm
• Dimension H: 350mm
• Dimension J: 550mm
• Shape: Quadrant
• Waste Location: Central to curved edge
• Orientation: Left Handed
• Discount Group: Green
• Contains: Shower tray (waste not included)
